ISO/PAS 8800 Walkthrough (Part 3): AI Safety Requirements and V-cycle
This article concludes our ISO/PAS 8800 Walkthrough series by focusing on the development of AI safety requirements, as well as AI system design and verification & validation (V&V). Building on Part 1 (overview) and Part 2 (AI and dataset lifecycles), this final installment explains how safety requirements are derived for AI systems and how they are implemented, verified, and validated within the broader frameworks of ISO 26262 and ISO 21448 (SOTIF). It highlights the iterative nature of AI system development and the integration of AI-specific considerations into established safety engineering practices.
Looking to go deeper? SRES offers ISO 8800 AI Safety Professional (AISP) training in collaboration with SGS-TÜV Saar, as well as AI safety consulting to help organizations implement ISO 8800 alongside ISO 26262 and ISO 21448 (SOTIF) within real-world product development programs.
Introduction
In part 3 of this blog series, we will dive deeper into the development of AI safety requirements, as well as AI system design and verification & validation (V&V).

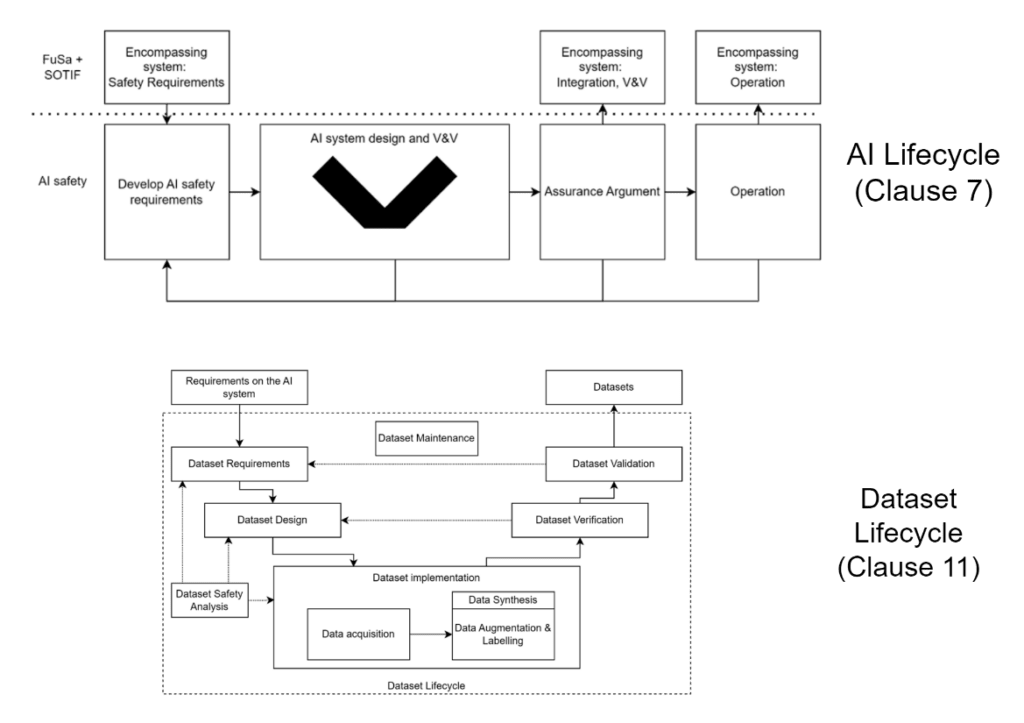

Let’s visually reflect on the content of the previous parts and how they are connected to part 3 of this blog series.
Blog Series Part 1: ISO/PAS 8800 overview
Blog Series Part 2: The AI and Dataset Lifecycles
This Blog, Part 3: AI Safety requirements and V-cycle
Now, in Part 3, we will look at details of the AI safety requirement development as well as the AI system design and V&V.

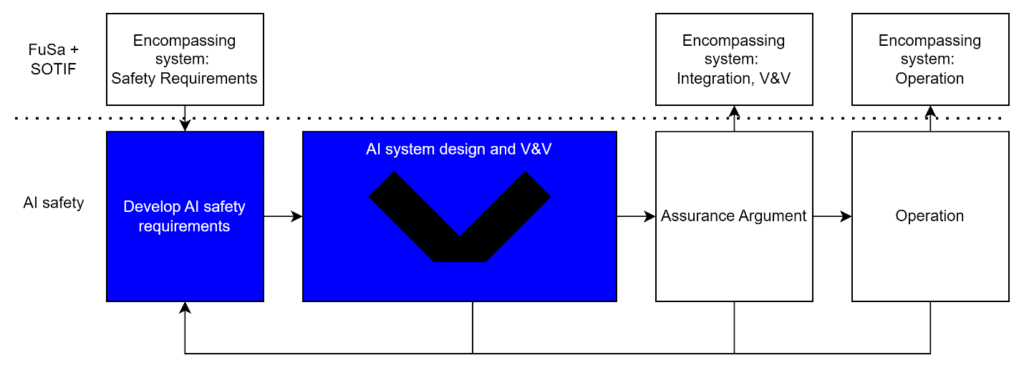

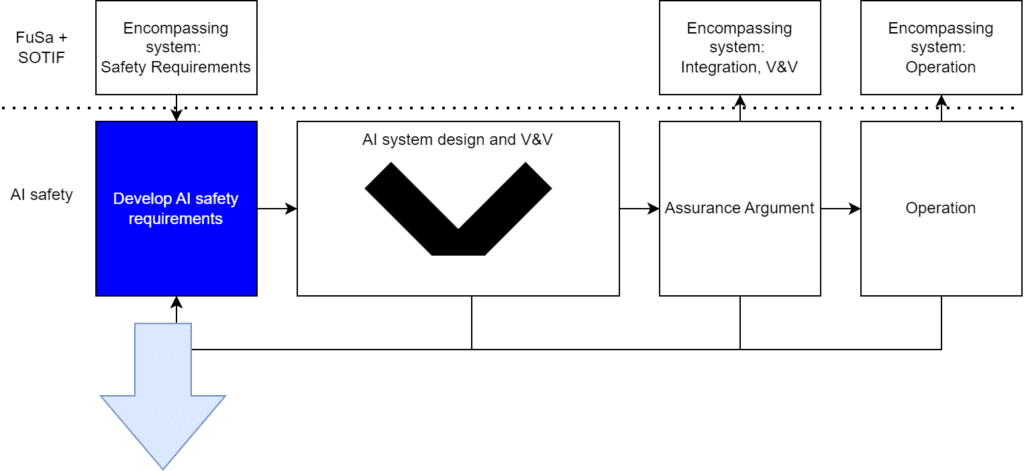

The blue highlighted aspects of the AI lifecycle show the content of part 3 in respect to the AI lifecycle.
1. Development of AI safety Requirements

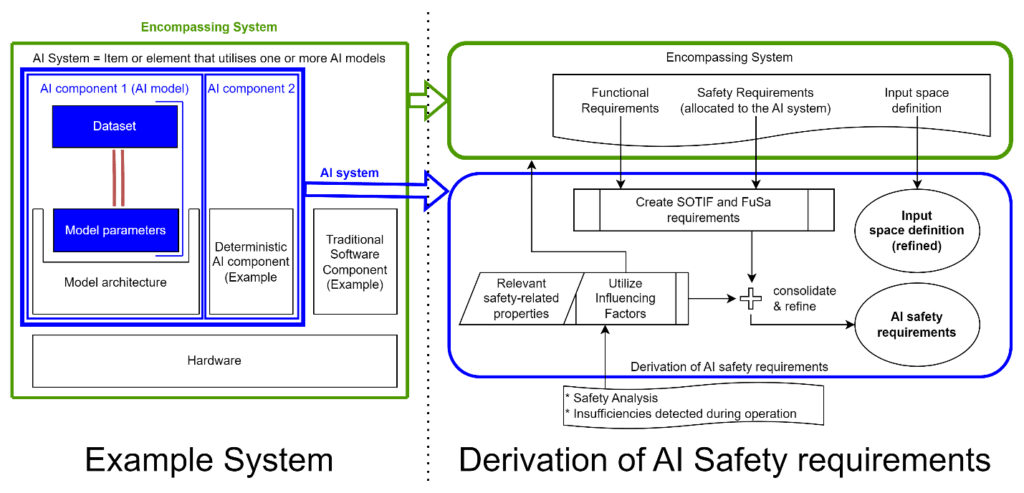

The right side of this diagram – showing the derivation of AI safety requirements – is based on ISO/PAS 8800. The left side was created for this blog and illustrates a simplified static architecture, with AI-relevant aspects highlighted in blue. Model parameters (i.e., trained weights) are shown separately to emphasize how AI safety requirements apply to model parameters. ISO 26262 part 6 applies for the implementation of the AI component software.
The separation between the encompassing system and the derivation of AI Safety requirements emphasizes the novel aspects introduced by AI. Work products generated for AI safety are intended to be integrated with existing functional safety and SOTIF work products, where appropriate.
1.1 Inputs to AI Safety Requirements Derivation

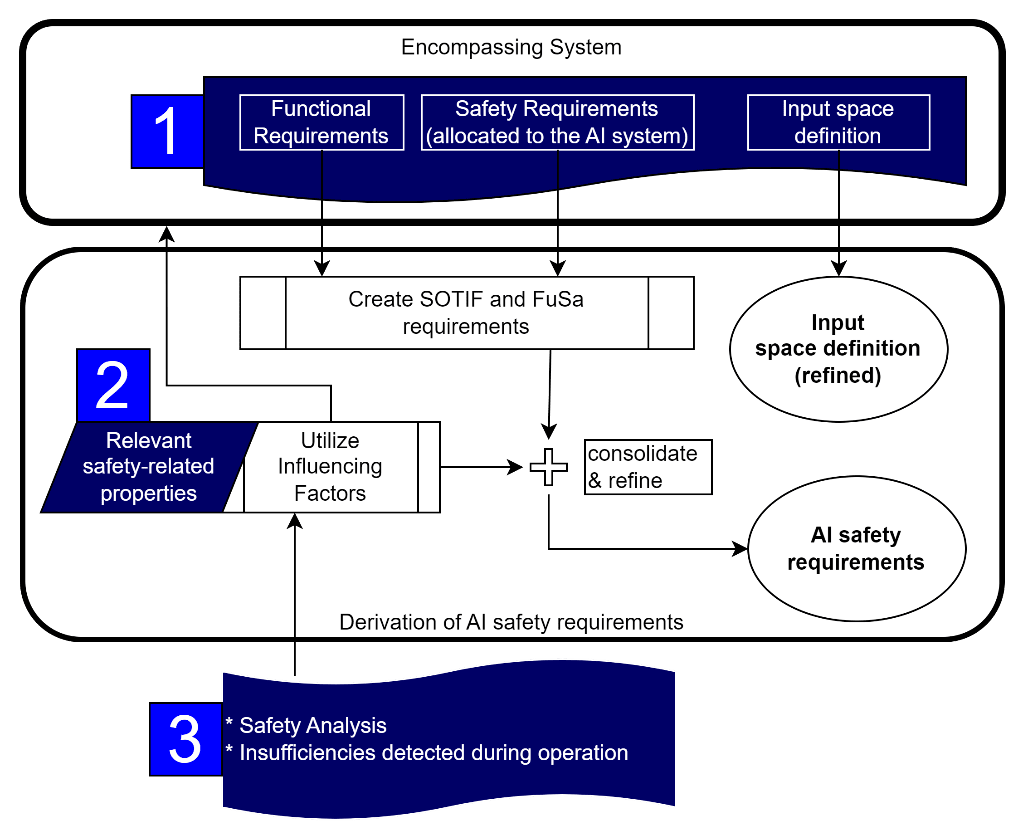

The key inputs for deriving AI safety requirements are illustrated in the following figure.
| AI Property | Description |
|---|---|
| AI robustness | Maintain an acceptable level of performance with exposure to foreseeable and relevant perturbations. Examples: Camera noise, blur, glare, weather, adversarial attack (perturbations designed to fool the model while being almost imperceptible) |
| AI generalization capability | Good response to previously unseen data |
| AI reliability | Ability to perform its task without AI errors, i.e. provide expected output, under stated conditions for a specified time period |
| AI resilience | Ability to recover quickly from an incident |
| AI controllability | Ability of an external agent to override the AI system behavior |
| AI explainability | Ability to explain the factors of an AI decision with natural language |
| AI predictability | Ability of an AI model to reliably indicate if its prediction can be trusted or not |
| AI alignment | Ensures that the AI system behavior is aligned with human behavior |
| Justified design decisions | Design decisions are justified and negative effects are analyzed. |
| Maintainability | Ability to easily identify operational insufficiencies and countermeasures, and modify the encompassing system. |
| AI bias and fairness | AI bias in the model or dataset |
| Distributional shift over time | Distributional shift data over time, e.g. sensor aging, new object classes on streets. This distributional shift can lead to performance decrease |
Feedback from safety analysis and insufficiencies detected during operation are a 3rd input source.
1.2 Creation of AI Safety Requirements

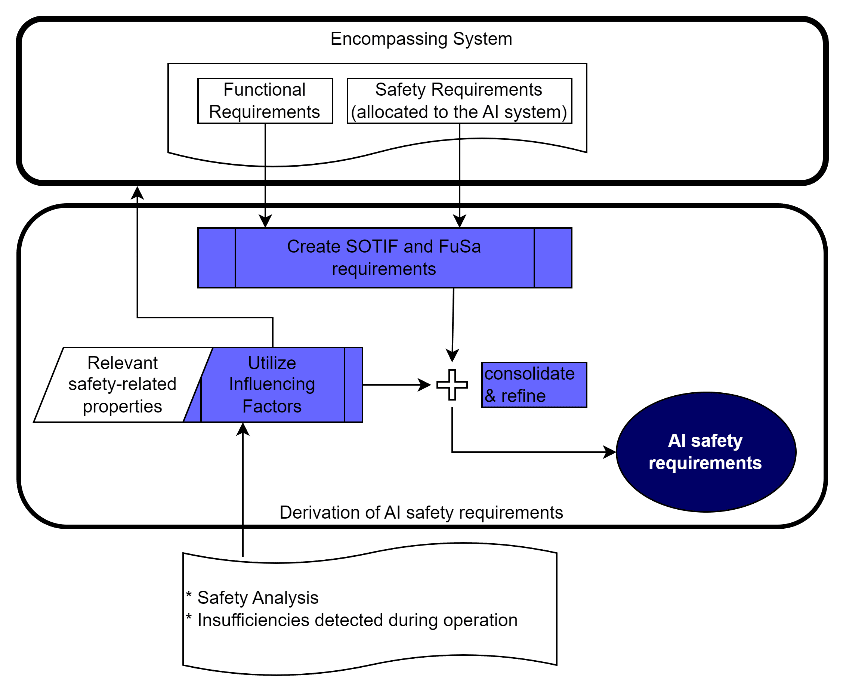

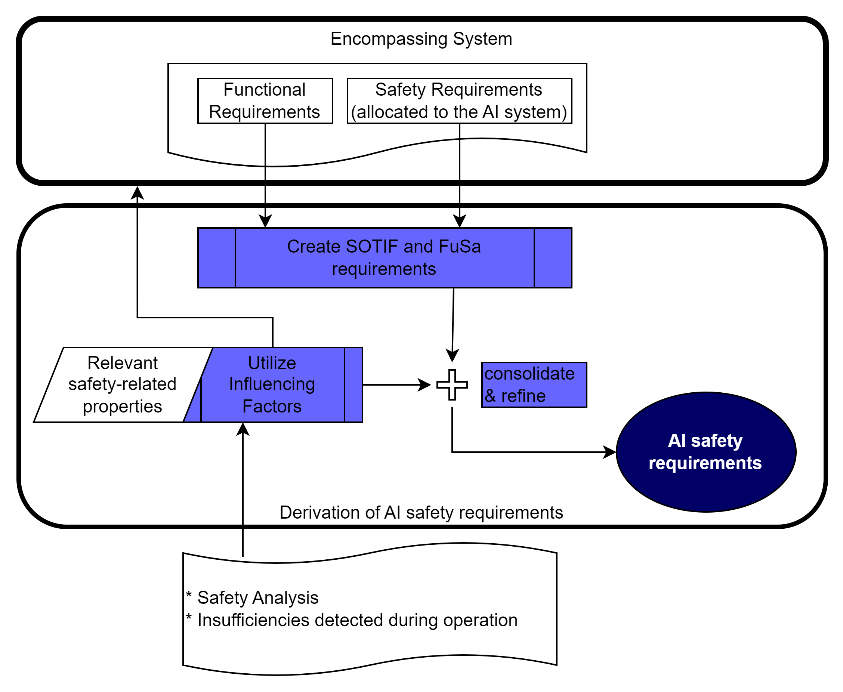

The previous section outlined the sources to derive AI safety requirements from. The following illustration highlights the creation process in blue.
SOTIF and FuSa requirements of the encompassing system form the starting point. Influencing factors are applied to relevant safety-related properties, which are used to refine the requirements of the encompassing system. The resulting requirements are called AI safety requirements. An AI safety requirement simply denotes a requirement that is allocated to an AI system.
Unlike a downstream requirement process as known from ISO 26262, the resulting AI safety requirements are at the same hierarchy level as the input requirements. It’s a refinement and addition of requirements, not a derivation process.

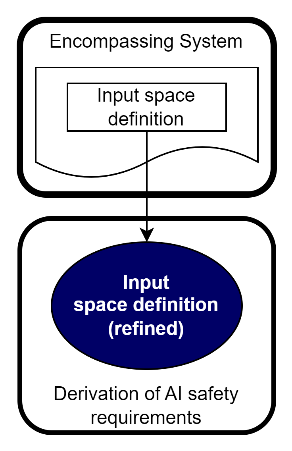

1.3 Refinement of the Input Space
The refinement of the input space adapts the vehicle ODD to be specific for each AI component.
The refined input space definition is specific to the AI system and corresponds to the ODD.
The refined input space of an object detection system would only detail the types of objects that would occur within the ODD of the vehicle.
For example, consider two AI systems: one for object detection as part of an Automatic Emergency Braking (AEB) function, and another for Lane Keep Assist (LKA). While both AI components may operate within the same ODD, their input spaces differ: the AEB input space focuses on various object types, whereas the LKA input space emphasizes lane line characteristics. The refined input space for lane detection would be the different lane types (such as white, yellow, solid, dotted) and road boundaries (such as flat, dropping edge). Both AI systems would have to considering environmental conditions such as rain, ice or snow.
2. AI system design and V&V

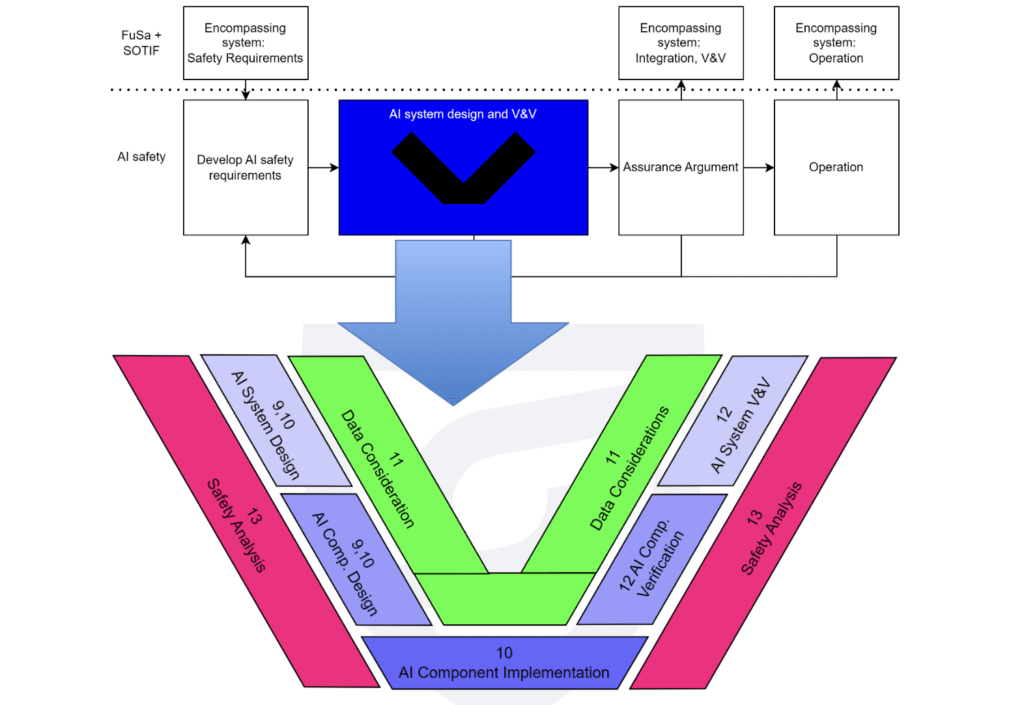

The V-cycle for product development also exists for AI system development.
2.1 Dataset Considerations
Data is central for most AI systems, particularly those based on ML.

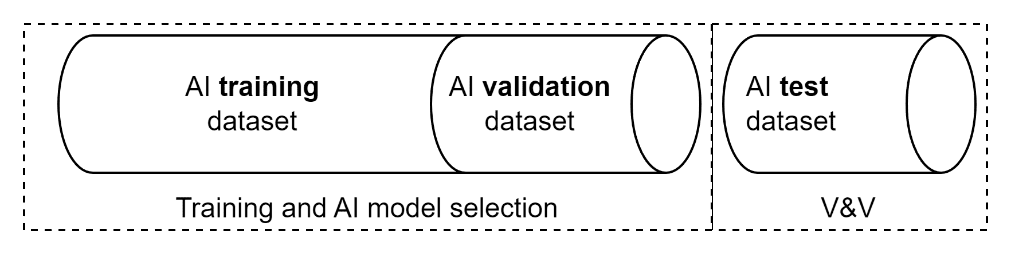

As outlined previously, the dataset lifecycle supports the creation of high-quality datasets, which are typically divided into training, validation, and test datasets.
- AI training dataset: Used to train the AI component, enabling it to develop the capability to perform its intended task.
- AI validation dataset: Used to evaluate the performance of different AI model candidates and to tune hyperparameters. Once validated, the AI component should meet the defined AI safety requirements. Note that the term validation dataset originates from the AI community and may not be confused with safety validation in the context of ISO 26262, which refers to vehicle-level testing.
- AI test dataset: Used to assess the expected performance and generalization of the trained AI model or AI system with unseen data. “Unseen” meaning data not used to train it. Independent metrics are derived from this dataset to demonstrate that acceptance criteria are satisfied.
Note the distinction between dataset validation and an AI validation dataset. Dataset validation focuses on ensuring the correctness and quality of the dataset itself, whereas an AI validation dataset is used to assess the correctness and performance of the trained model.
2.2 Design and Implementation
At this stage, AI safety requirements and the input space definition have been established.
As discussed in part 2 of this series, ISO/PAS 8800 defines AI system as follows:

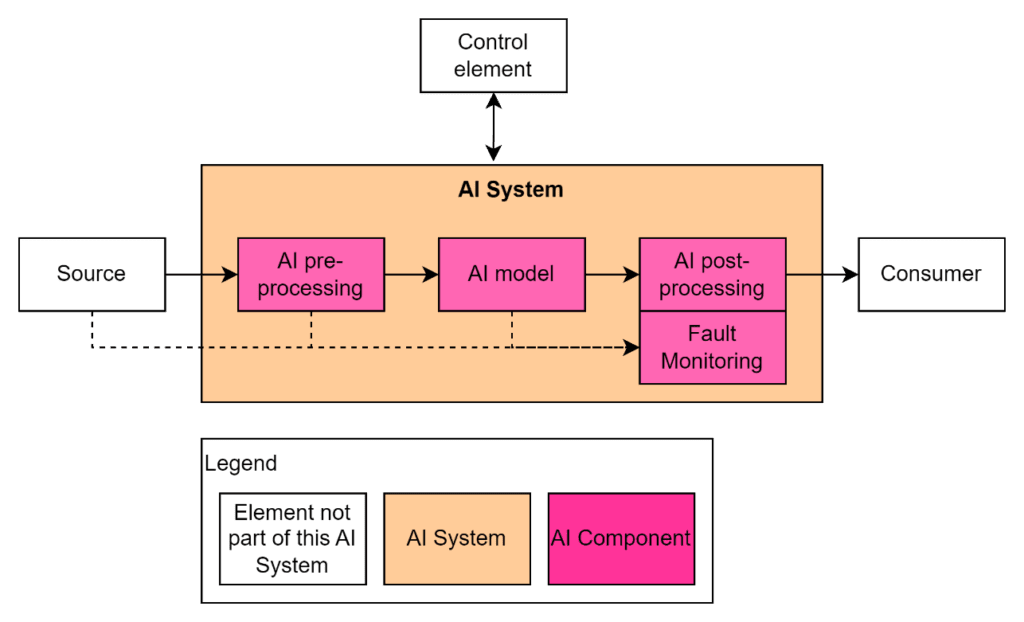

The AI system design level is the superset of AI components and traditional software components. The source code responsible for computing the AI model output must be implemented as specified in accordance with ISO 26262 and thus, be free from systematic faults to ensure safety. In addition to the core model inference logic, the AI system typically includes pre-processing and post-processing components which may be conventional, deterministic software components.
The AI model is one element within the AI system which for ML may consist of a backbone (encoder) and one or more task-specific decoder heads.

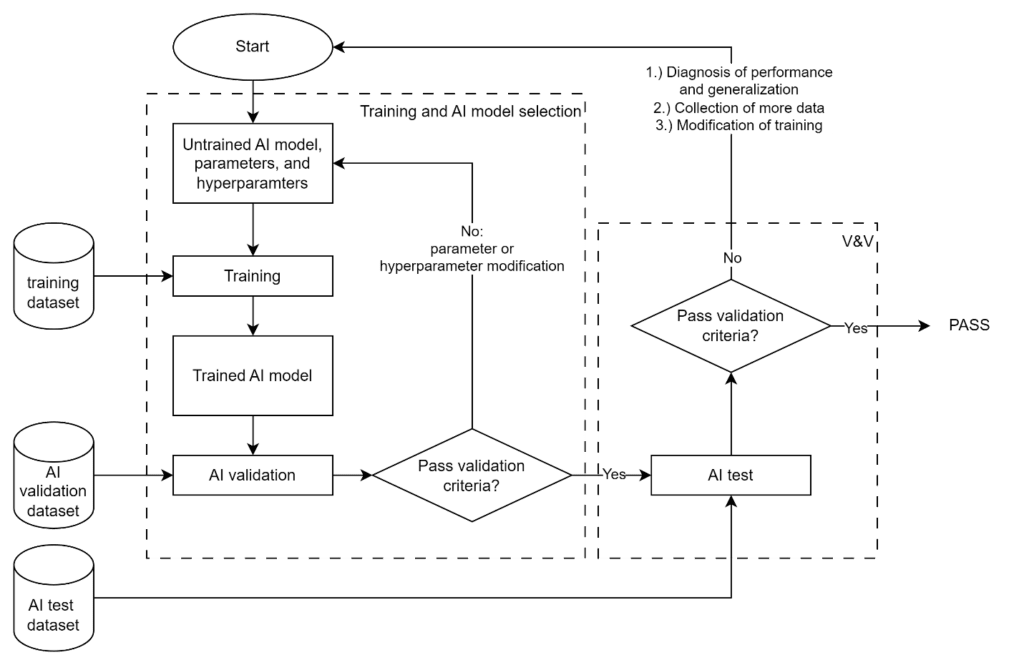

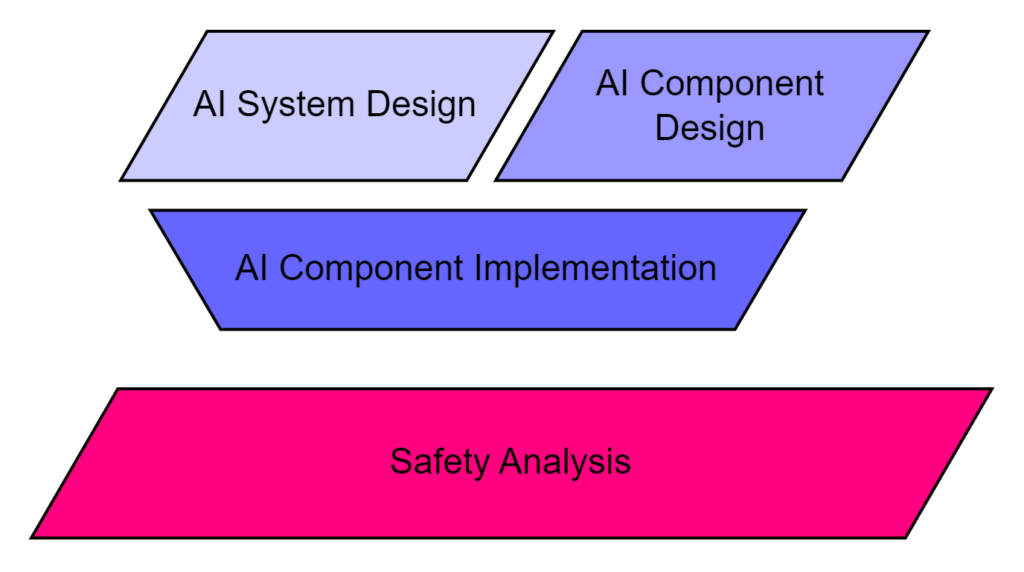

The AI model and implementation is visualized in the context of the datasets in ISO/PAS 8800 clause 11:

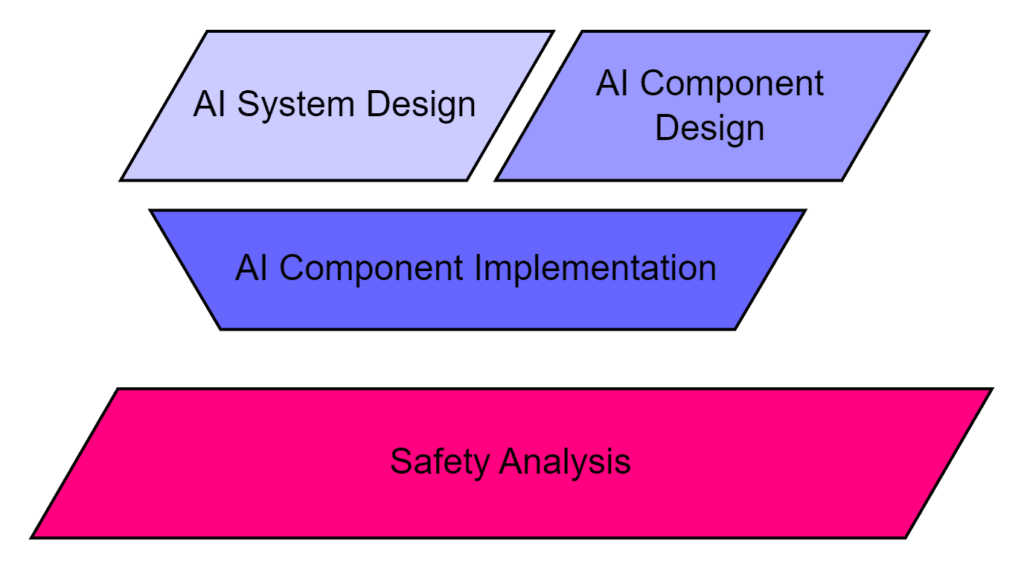

Safety analysis takes the system and component design as input and evaluates it against the defined AI safety requirements. The outcome of this analysis may necessitate updates to the requirements, the architecture, or the implementation, reinforcing the iterative nature of the development lifecycle.

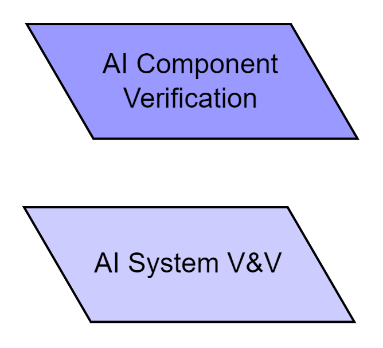

2.3 AI Component and System verification
Testing should be performed at the lowest practical level, i.e. on AI components if it can be evaluated in isolation. There is benefit in testing the AI component in isolation if feasible, so that issues deriving from the AI component can be identified early. However, if stand-alone testing is not feasible then testing the AI component at a higher level of integration is acceptable. The integration level at which testing is conduction is not as important as sufficient test coverage against requirements and AI properties.
Test cases should be derived with a combination of methods known from ISO 26262 such as requirement analysis, equivalence classes and analysis of boundary values. For ML, analysis of requirements relies on meeting safety relevant performance requirements.
Testing is performed at different levels of system integration
- AI component testing
- Integrated AI system
- Integration of the AI system with the encompassing system
- Post-development validation
Examples of methods for testing AI components include:
- Statistical testing: Verifying that metrics defined in the AI safety requirements are met.
- Data/scenario replay: Using recorded datasets or known pre-crash scenarios to evaluate AI performance. Examples include test drive recordings or simulations of critical events.
- Metamorphic testing: Transforming one test case into another, using metamorphic relations that describe how input changes should affect output changes.
- Synthetic test case generation: Creating a wide variety of scenarios, including edge cases that are unsafe or impractical to reproduce in the real world.
Testing under resource limitations: Evaluating model performance under constraints, such as specified processing frequency or memory limits.
Summary and further reading
Part 1 of this blog series provided an overview of the clauses and essential work products of ISO/PAS 8800.
Part 2 and part 3 elaborate on certain aspects in more detail:
- Part 2 covers the AI lifecycle as well as the dataset lifecycle
- The above part 3 outlines how AI safety requirements are derived and the AI system design including verification and validation.
For further reading, the following blog series is recommended highlighting conceptual aspects of ISO/PAS 8800 as well as certification
In Building Defensible AI Assurance Arguments in ISO/PAS 8800 (Part 1): Foundations, we examined how ISO/PAS 8800 extends ISO 26262 and ISO 21448 (SOTIF) through refinement of triggering conditions and structured traceability into the machine learning lifecycle.
In Building Defensible AI Assurance Arguments in ISO/PAS 8800 (Part 2): Dataset Governance and Validation, we focused on dataset governance, validation strategy, and the transition from R&D practices to production-grade process discipline.
In Building Defensible AI Assurance Arguments in ISO/PAS 8800 (Part 3): Certification, Audits, and Applicability Beyond Automotive we address certification, audit expectations, and the broader applicability of ISO/PAS 8800 beyond automotive systems.
